19 ports Gigabit Ethernet Consist Switch

Consist Switch

placehold

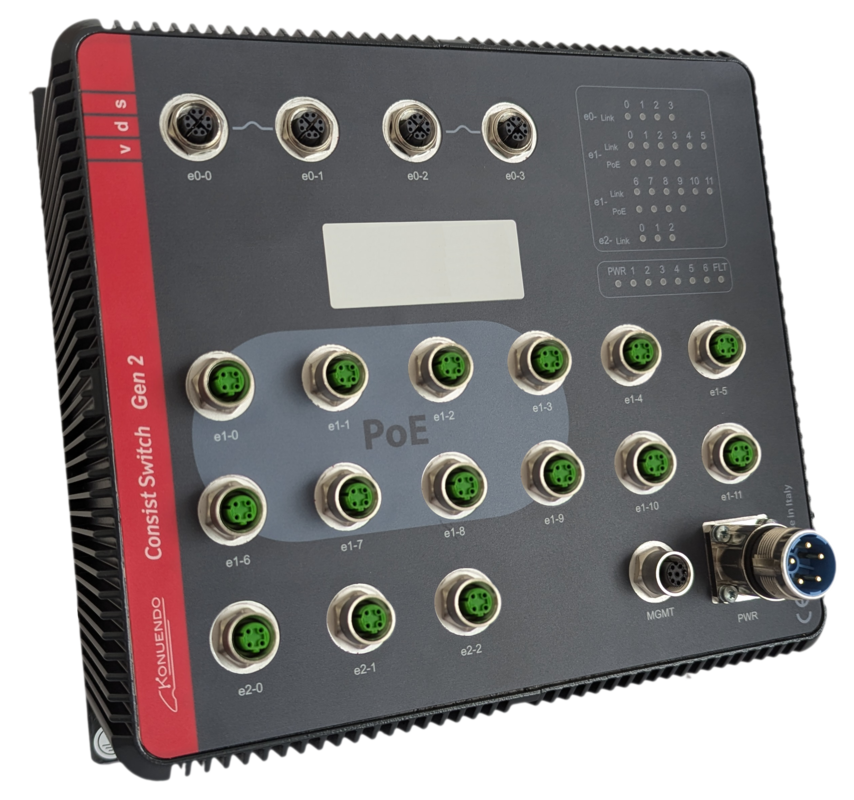

19 ports GbE Consist Switch


  • Layer 2 managed switch with Layer 3 services
  • 15x GbE ports
  • 4x FE ports
  • PoE+ capability
  • 60 W PoE+ budget available
  • 2x Device hardware bypasses
  • Power Supply 24 Vdc ÷ 110 Vdc available
  • Compliant with EN 50155 standard
  • Compliant with EN 45545 standard
  • Extended temperature range -40 °C ÷ +85 °C available
  • up to IP65 rated

VDS Rail's 19 ports Gigabit Ethernet Consist Switch is a Gigabit/Fast Ethernet managed switch EN 50155 compliant, designed for network applications in Rolling-Stock environments.

Layer2/Layer 3 managed switch

Besides providing wire-speed layer 2 forwarding capabilities, this switch also supports Layer 3 services, allowing IPv4 unicast and multicast routing among different VLANs. Layer 3 extensions include inter-VLAN routing with packet filtering together with NAT. OSPF and RIP dynamic protocols are also supported.

Besides the standard features provided by this class of devices, this Consist Switch provides advanced software facilities - TTCMP Network Toolkit - for onboard network discovery and configuration.

Wide range of models available

The Consist Switch has four fifteen (15) 1000BASE-T ports, and four (4) 100BASE-TX ports.

Four (4) Gigabit Ethernet ports and four (4) Fast Ethernet ports can be equipped with PoE+ capability.

Reliability

Two (2) pairs of Gigabit Ethernet ports are equipped with bypass function, making the device completely transparent to the network in case of a power outage or failure.

Main technical specifications

  • IEEE 802.3 Standard Physical layer: 10BASE-T, 100BASE-TX, 1000BASE-T
  • IPv4 protocol supported (IPv6 protocol ready)
  • Spanning tree (STP 802.1D) and Rapid Spanning Tree (RSTP 802.1w)
  • Link aggregation protocol (LACP 802.3ad)
  • Up to 4096 802.1Q VLANs
  • DHCP option 82 handling
  • IGMP versions 1, 2 and 3 snooping
  • SNMP v1, v2c, v3 device management
  • Static IPv4 unicast and multicast routing
  • OSPF and RIP dynamic routing protocols
  • Network Address Translation (SNAT, DNAT and R-NAT)
  • Packets filtering


Physical data

  • Connector type: M12 for Ethernet ports and M23 for power supply
  • Power supply: 24 Vdc ÷ 110 Vdc
  • Interruption voltage supply class: S2, according to EN 50155
  • Power consumption: 40 W max (PoE excluded)
  • PoE+ budget: 60 W
  • Overall dimensions: 248 x 240 x 51 mm (noPoE version), 248 x 240 x 88 mm (PoE version)
  • Weight: 3.0 Kg (noPoE version), 4.7 Kg (PoE version)
  • Operating temperature: -25 °C ÷ +70 °C (+85°C for 10 min. according to EN 50155 class OT3 with extended operating temperature ST1) or -40 °C ÷ +70 °C (+85°C for 10 min. according to EN 50155 class OT4 with extended operating temperature ST1)
  • Storage temperature: -40 °C ÷ +85 °C
  • Degree of protection: IP40, IP65

Main approvals/compliance

  • EN 50155: Railway Applications (Electronic equipment used on rolling stock)
  • EN 61373: Shock & Vibration
  • EN 45545: Fire & Smoke
  • IEEE 802.3: Ethernet Network Standard
  • REACH Regulation and Waste Framework Directive (WFD)
  • RoHS Directive
